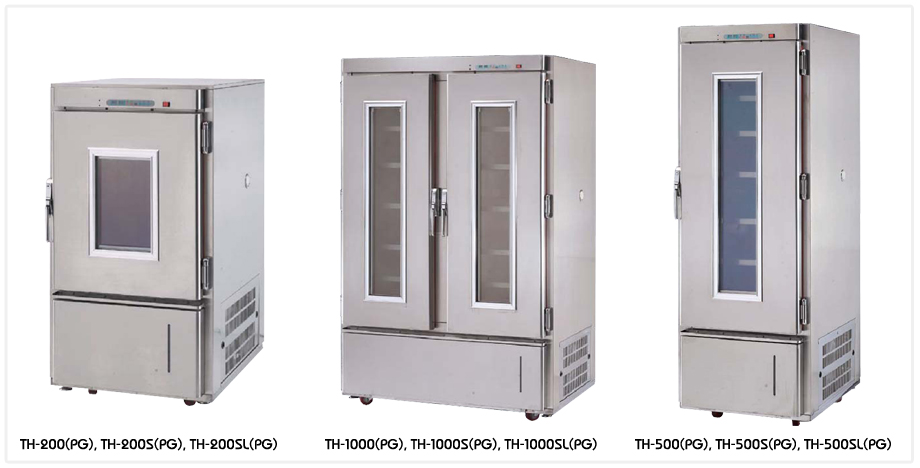

Model | TH-S | TH-SPG | TH-SLPG |
200 | 500 | 1000 | 200 | 500 | 1000 | 200 | 500 | 1000 |
Power Supply | 200 ~ 240 VAC 1 (or 3) phase 50 (or 60) Hz |
Max Current (A) | 7.4A | 7.4A | 10.7A | 7.4A | 7.4A | 10.7A | 8.85A | 9.55A | 11.4A |

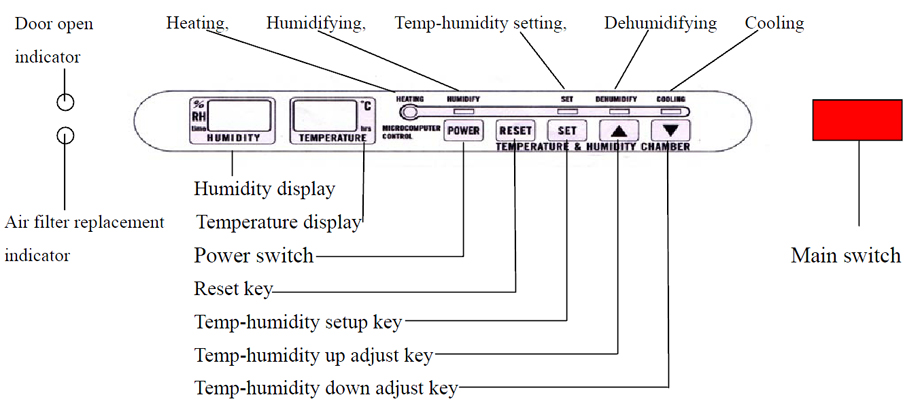

Temperature &; Humidity Control System | Microcomputor P.I.D control the temperature and humidity,
with automatic crash release device (watch dog) in case of crash |
Ambient Temperature for Allowable Operating Range | 0 ~ + 40℃ |

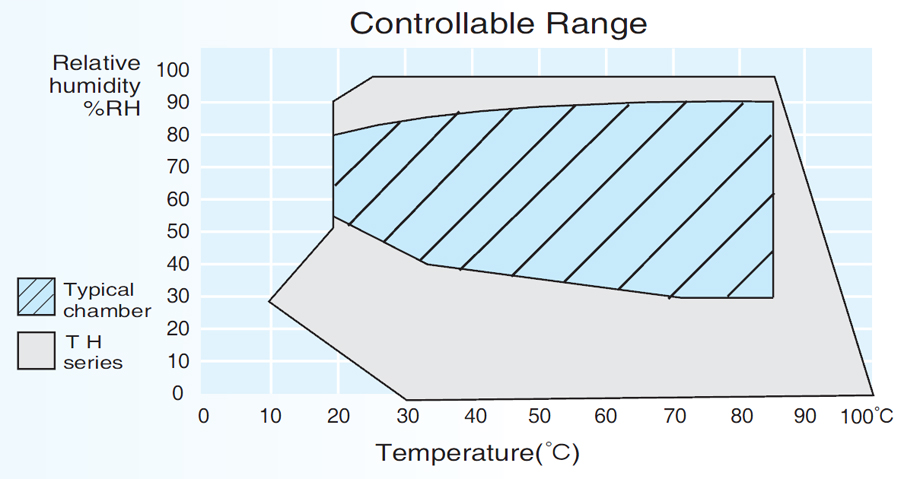

Performance | Temp. &; Humid. Range | 0 ~ 100℃ / 0 ~99% RH | 0 ~ 100℃ / 0 ~ 99%RH | -40 ~ 120℃ / 0 ~ 99% RH |
Temp. &; Humid. Fluctuation | ± 1℃ ±5% RH | ±1℃ ±5%RH | ±1℃ (-40 ~ 100℃) ±3℃ (100 ~ 120 ℃) ± 5% RH
|
Temp. &; Humid. Uniformity | ±3℃ ±5%RH | ±3℃ ±5%RH | ±3℃ ±5%RH |
Temp. Heat Up Rate | 0 ~ 100℃ 45MIN ,- 40 ~ 120℃ 60MIN |
Temp. Pull-Down Rate | 100 to 0℃ 50MIN,120 to -40℃ 60MIN |
Chamber Structure | Exterior Material | 1mm thick SUS #304 stainless steel plate,5mm tempered glass front panel |
Interior Material | SUS #304 stainless steel plate |
Insulation | Polyurethane foam (chamber an door) |
Refrigeration System | Mechanical single stage refrigerator system (air cooled condenser) |
Regfigerator | Hermetically sealed compressor |
Regfigerator Capacity | 572 W | 572 W | 979 W | 572 W | 572 W | 979 W | 746 W | 746 W | 1119 W |
Expansion Mechanism | Capaillary tube system | Auto - expansion valve system |
Cooler | Plate fin cooler |
Heater | Plate fin cooler |
Humidifier | Cr - Ni - Mo heater with stainless steel sheathed (heat evaporating system) |
Chamber Air Circulator | Sirocco fan |
Dehumidify System | Plate fin cooler |
Programable Control | N / A | 99 batches (repeatable up to 999 times) |
Data Logger | N / A | Bult-in 3600 sets of parameter (unlimited when connect to computer) |
Computer Connection | N / A | RS - 232 ,RS - 485,RJ - 45 (Optional) |
Fittings | Viewing window (glass incorporating generator),Cable port (40 mm) Chamber lamp (fluorescent lamp),Caster wheels with brakes,Power cord |
Accessories | Rubber cable port plug,Shelves (with four hooks),Fuse,instruction manual,Warranty |
Water Supply | Water Supply System | Gravity fill in system |
Tank Capacity | 6 L |
Water Quality | Electrical conductivity 0.1 ~ 10 μS/cm |
Inside Capacity (Liter) | 183 | 473 | 929 | 183 | 473 | 929 | 183 | 473 | 929 |
Dimensions | inside Dimensions (W x D x H,mm) | 560 x 635 x 515 | 560 x 635 x 1330 | 1100 x 635 x 1330 | 560 x 635 x 515 | 560 x 635 x 1330 | 1100 x 635 x 1330 | 560 x 635 x 515 | 560 x 635 x 1330 | 1100 x 635 x 1330 |
Outside Dimensions (W x D x H,mm) | 660 x 965 x 1270 | 660 x 965 x 1910 | 1200 x 965 x 1910 | 660 x 965 x 1270 | 660 x 965 x 1910 | 1200 x 965 x 1910 | 720 x 1025 x 1330 | 720 x 1025 x 1970 | 1280 x 1025 x1970 |
Weight (kg) | 100 | 140 | 188 | 100 | 140 | 188 | 120 | 160 | 210 |
