WL1 WIRE 150SQ 10M unit 600V railway wire for vehicles

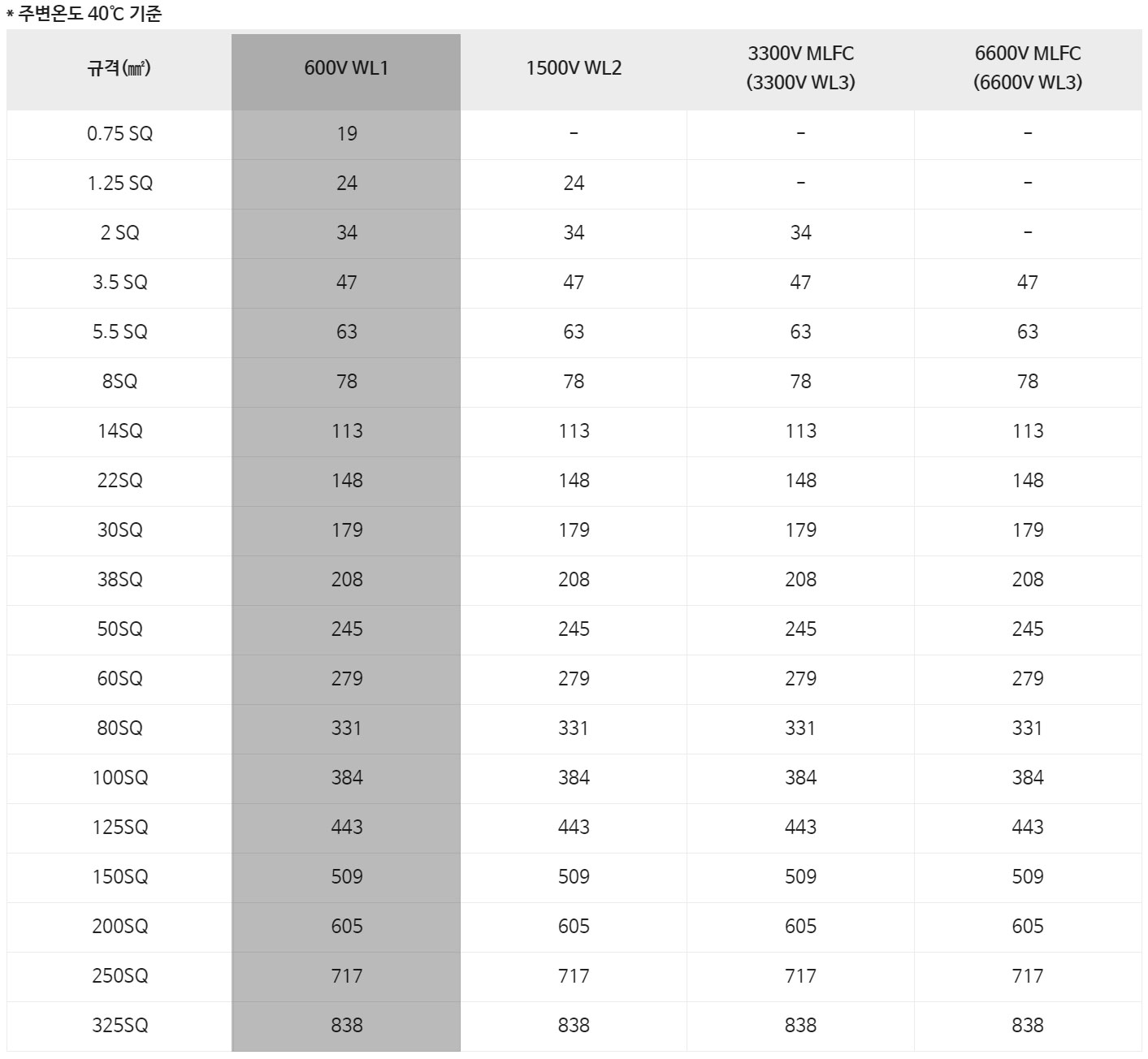

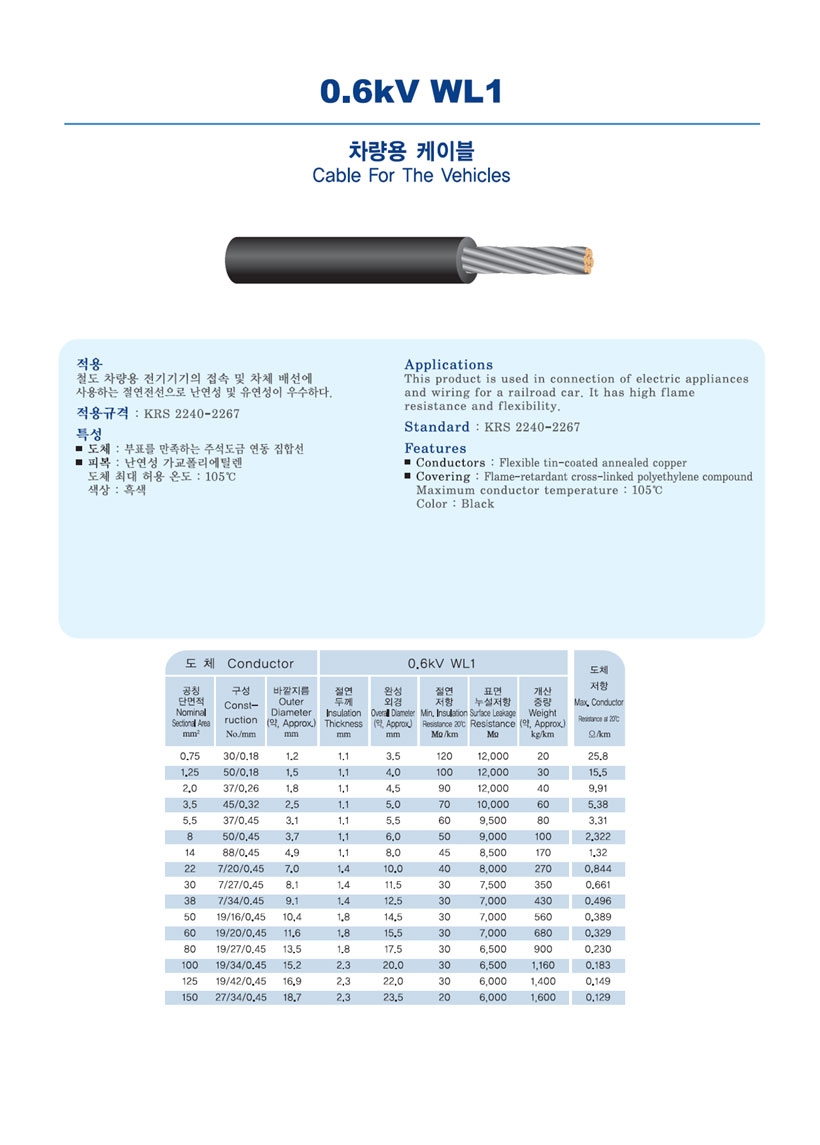

If you have any questions about WL1, please contact 0504-3105-4211.The WL1 car cable is used as a connection, draw line, vehicle wiring, or jumper line for railway car electrical equipment?There are many types depending on the allowable voltage.WL1 ->600V class WL2 ->1500V class MLFC (WL3) ->3300V,6600V class allowable voltage is high, increasing the insulation thickness to increase the outer diameter?Other wires except WL1 are also being handled, so please contact us if necessary.The insulator is a crosslinked polyethylene (XLPE) wire that is resistant to temperature by increasing the heat resistance temperature. (90 degrees) Applied specification:KRS 2240-2267 (in compliance with Korean railway standard) It also meets ROHS certification and can respond to environmental data. (What is ROHS? It represents the regulation on the restriction of hazardous substances. This regulation was created for the purpose of restricting and controlling the use of some hazardous substances used in electronics and electronics. If you are curious about the allowable current according to SQ, please refer to the table below.Thank you. WL1 WL2 WL3 MLFC ? &ltbr&gt
