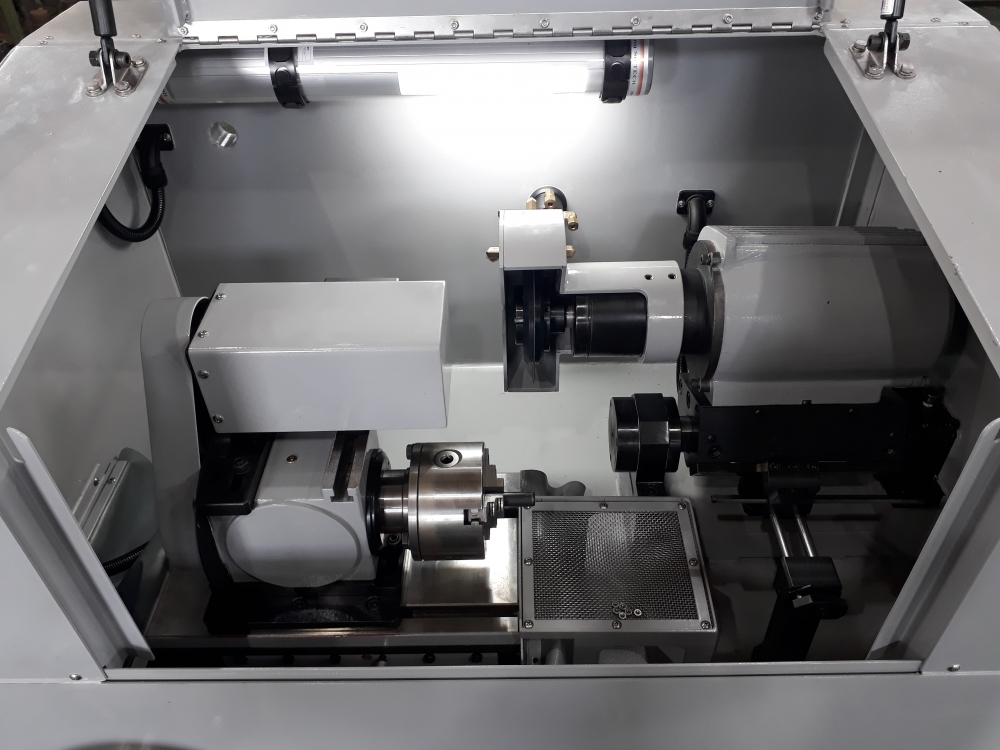

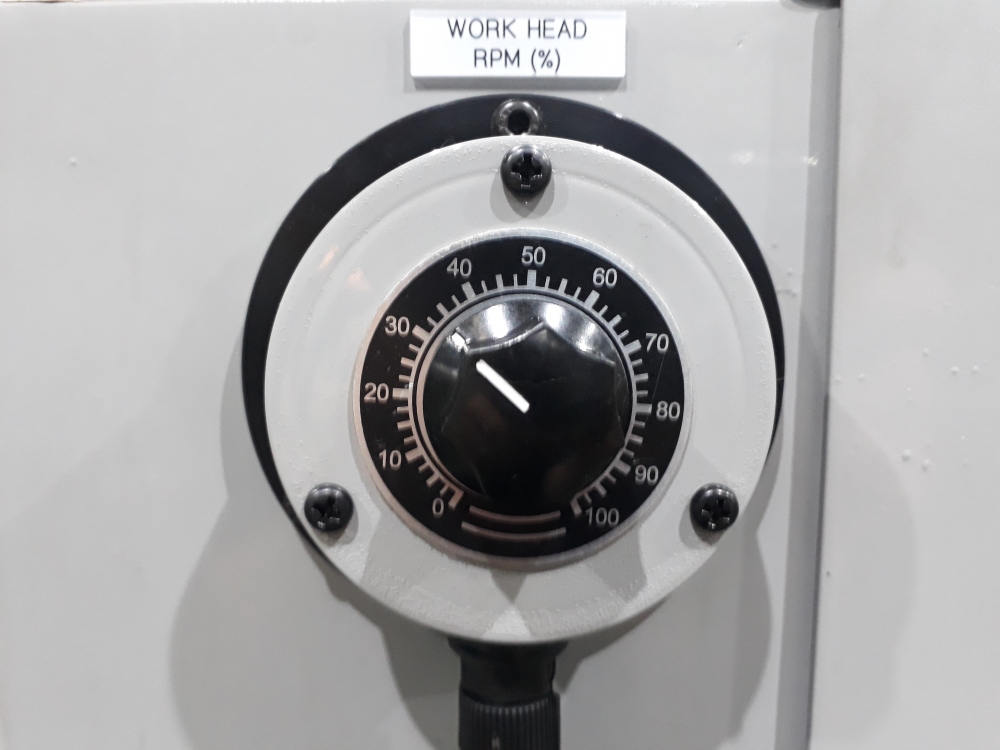

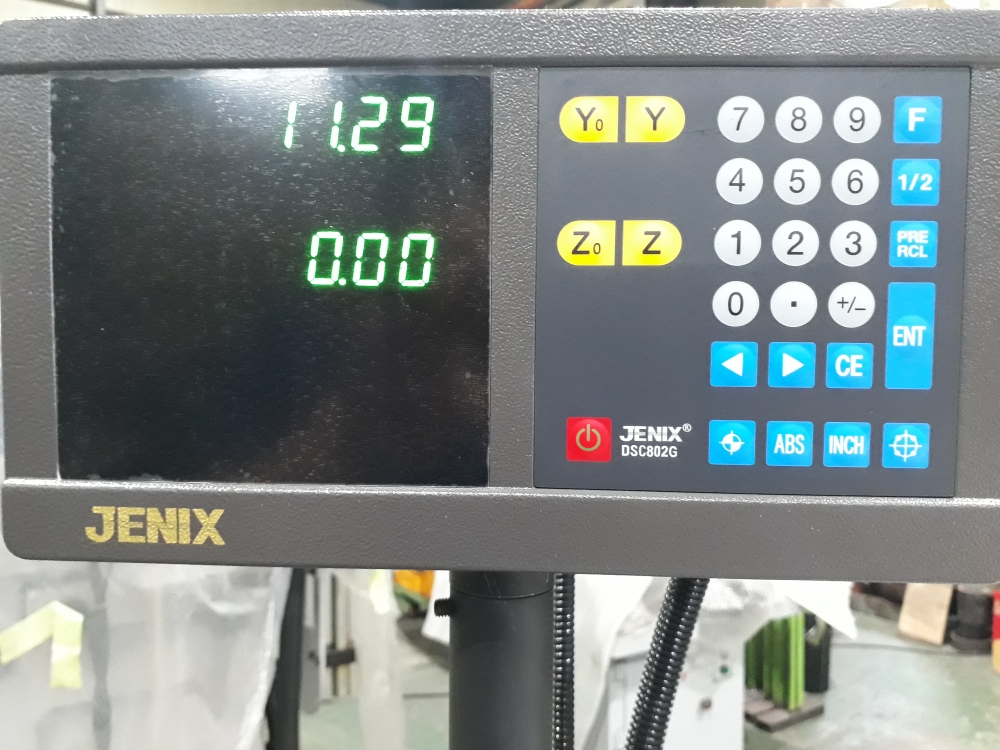

Product introduction Hardmetal material cutting equipment, which allows anyone to easily, quickly and accurately cut materials by ball screw and digital measurement.*It can be customized according to the size and shape of the product.*The motor direct spindle method was used.*When working in large quantities of the same product, a stop-bar device is installed for convenient and rapid work.*By rotating the main shaft (product), the rectangularity of the cut surface and the roughness of the cut surface were improved, and the product breakage was improved in the final stage of the cutting operation that occurs during the product fixing cutting method.*The rotation of the main shaft is constantly variable, and the rotation speed can be adjusted using the volume depending on the size and cutting situation of the product even while working.-Main shaft R.P.M :0 to 120 R.P.M. (adjustable) Product specifications * Maximum diameter of cutting:25 mm*TABLE Left and right transfer:170 m/m*Applied WHEEL:150 mm to 180 mm*Cut shaft MOTOR 60W (using a reducer) *Spindle MOTOR 0.75KW 2P*Cutting oil MOTOR 60 W*Machine size 1000 × 650 X1250 (H)mm ※ The above specifications may be changed without prior notice for product quality.
