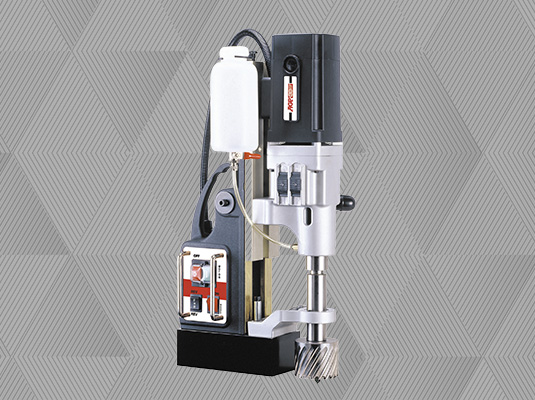

magnetic drill/ME 7500/4 (4 Speed)

Request for price

Prod No. :

270305
Manufacturing date :

-

DHC

Exhibition

Hall 8 Tools · Parts · Materials · MRO

Phone : 0504-3105-5467

Product information

Model name ME 7500/4 (4 Speed) Power consumption 2,000 W Rotation speed 150/90, 200/120 rpm
300/180 rpm feature high output durability motor
Tapping drill workable
Speed conversion (4 Speed) Product specification◎ Specification table
Model ME7500/4 Power consumption 2,000W Voltage 220 V 60Hz No-Load / Load Speed (1 Stage) 150 / 90 rpm No-Load / Load Speed (2 Stage) 200 / 120 rpm No-Load / Load Speed (3 Stage) 300 / 180 rpm No-Load / Load Speed (4 Stage) 380 / 230 rpm Maximum Capacity [Diameter x Depth (Broach Cutter)] 75 mm x 50 mm (3" x 2") Maximum Capacity [Diameter x 150 mm (1-1/4" x 4-7/8") Maximum Capacity [Diameter x Depth (MT3 Chuck Adapter With Twist) x Depth (Taps)] 25.4 mm × 40 mm (1" x 1-9/16") Magnetic adhesion 32,000 N Overload Protection Device Function Weight 24.4 kg (53.79 Lbs) EMC Registration Number MSIP-REM-LYI-ME7500 Standard Accessories* Wrench M8 * Hex key M2.5 * Hex key M4 * Chip protection kit * Oil tank kit * Safety chain (belt) * Drift sold separately* MT3 chuck adapter * 5/8" (16 mm) chuck & chuck key * MT3 tapping adapter * tapping attachments * pipe vice * Quick-Release Avo◎ feature high power durable motor · tapping drill workable · speed change (4 speed) · Max Ø 75 × 50 mm broach cutter · 32 mm twist drill, large capacity machine for 25.4 mm tapping work
