KIMO® – KIMO INSTRUMENTS ・ SAUERMANN GROUP

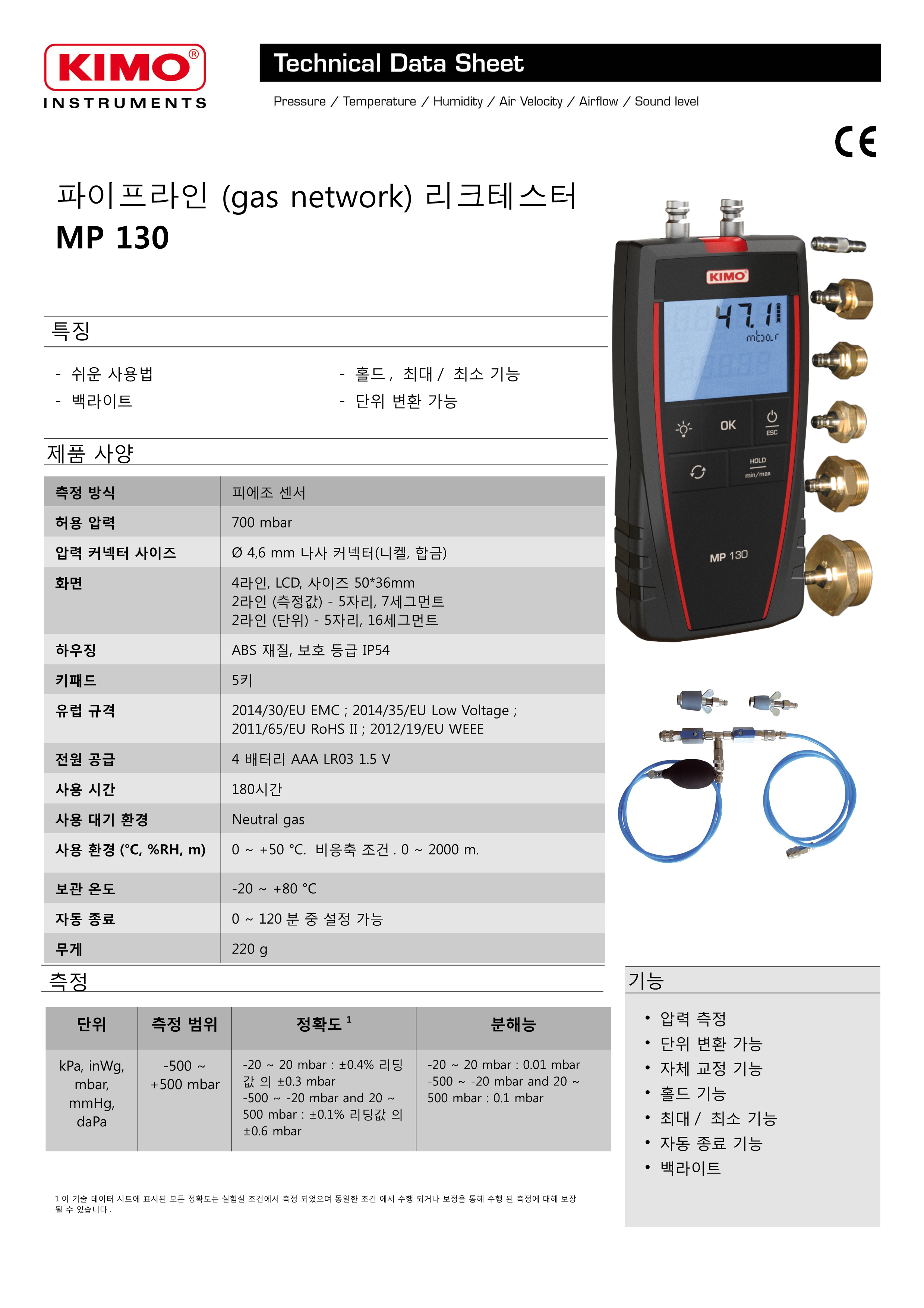

MP 130
- LEAKTEST, 리크테스트, 누기감지기, 누설감지기
- 자동 & 메뉴얼 셀프 캘리브레이션
- HOLD / MIN / MAX
- 실리콘튜브 포함
키모 MP130 키모 MP-130 키모 MP 130 키모 KIMO MP130 KIMO MP-130 KIMO MP 130 KIMO
제품 개요
측정범위
±500mbar
정밀도
-20 ~20mbar :±0.4% 측정값의 ±0.3mbar
-500 ~-20mbar :±0.4% 측정값의 ±0.6mbar
-500 ~-20mbar :±0.4% 측정값의 ±0.6mbar
20 ~500mbar :±0.4% 측정값의 ±0.6mbar
분해능
-20 ~20mbar :0.01mbar
-500 ~-20mbar :0.1mbar
-500 ~-20mbar :0.1mbar
20 ~500mbar :0.1mbar
허용압력
700mbar
Product info
MEASURE DETAILS
Units
mbar, kPa, inWg, mmHg, daPa
MEASURING RANGES
Etanchéité réseau de Gaz
-500.00 mbar ... 500.00 mbar
TECHNICAL DETAILS
Parameters
Gas detection
Displays
4-line display
IP Protection
IP 54
Battery life
180 hours
Standards
2011/65/EU RoHS II
2012/19/UE DEEE
2014/30 UE EMC
2014/35/EU Low Voltage
2012/19/UE DEEE
2014/30 UE EMC
2014/35/EU Low Voltage
Power supply
4 piles AAA LR03 1.5V
Protective cover
No
Interchangeable module
No

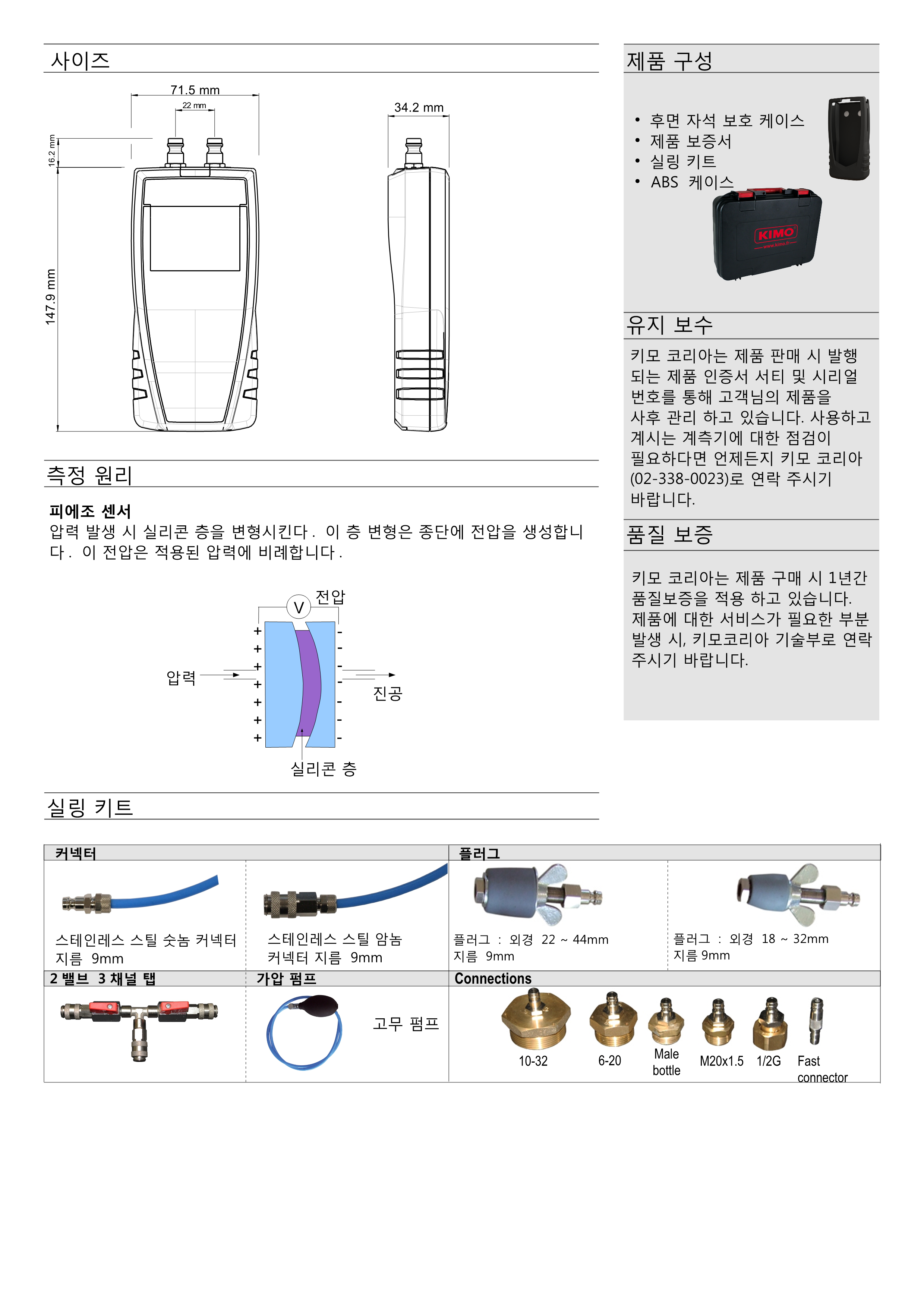

INSTRUMENT DIMENSIONS
Length
71.5 mm
Width
34.2 mm
Height
147.9 mm
Weight
220 g
OPERATING TEMPERATURE
Min
0.00 °C
Max
50.00 °C
STORAGE TEMPERATURE
Min
-20.00 °C
Max
80.00 °C
