MEGGER AVO830 & AVO835 TRMS Digital Multimeter

Meger · MEGGER – High-End Multimeter AVO830 & AVO835 – High-End Multimeter

• Multimeter
– AVO830 · AVO835
Main features
TRMS voltage and current measurement dual digital reading classic Meger analog arc 0.1% accuracy 4 Phase sequence measurement for ½ digit 3-phase circuit and motor tests 10MΩ and 10kΩ input impedance switching high/low sensitivity Non-contact live line detection of 0.01Ω to 50MΩ for resistance, conductance and diode measurement Automatic and manual range control max, Minimum and Average Measurement Capture Measurement Smoothing Hold and Automatic Hold Mode 800Hz Low Pass Filter for Fast-Changing Quantity Capture Measurement of 靜 capacitance [Capacitance] and frequency measurement temperature IP54 rating

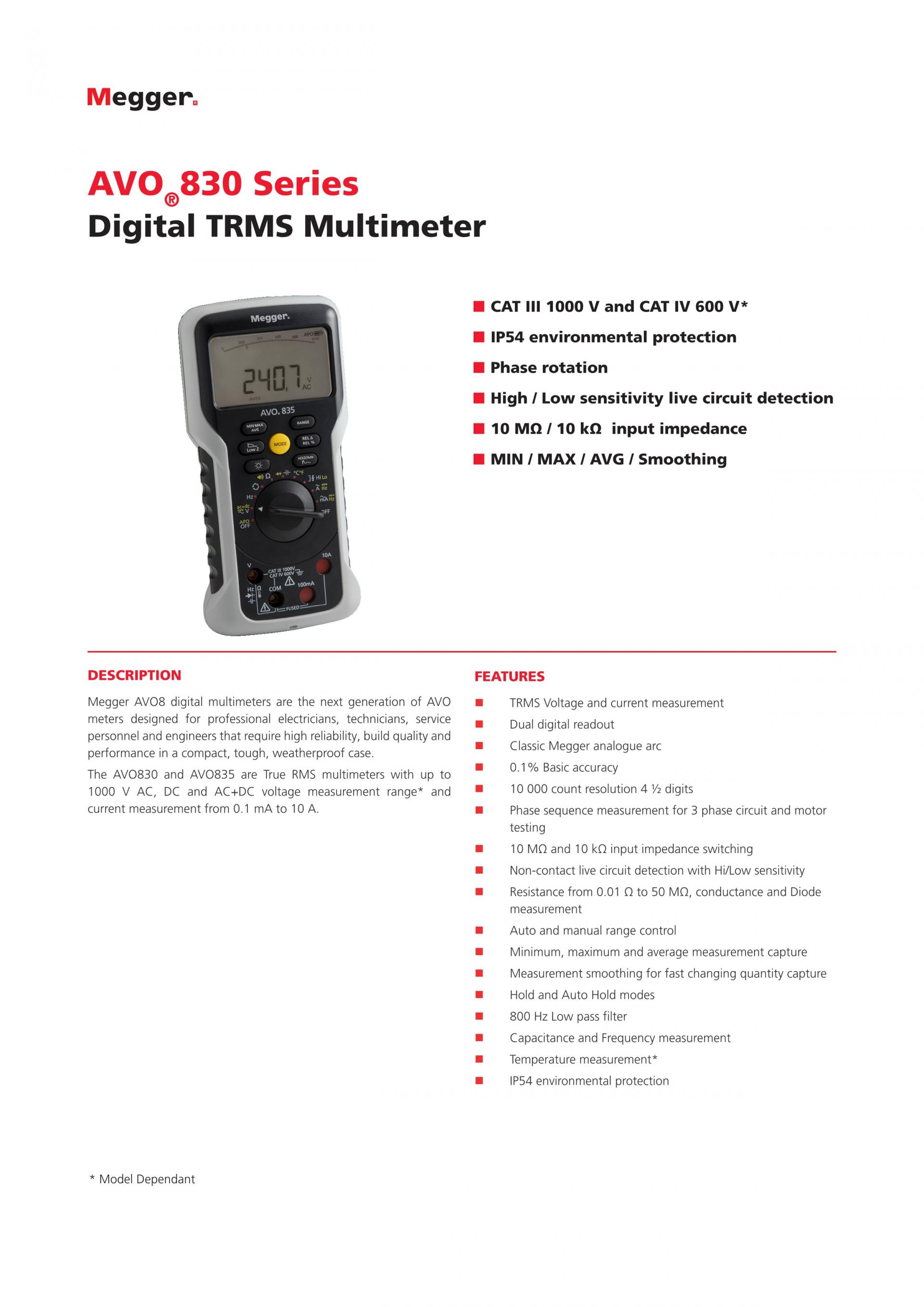

Product overview
Megger AVO800 series digital multimeters are next-generation AVO meters designed for professional electricians, engineers, service staff and engineers who require high reliability, build quality and performance in a compact, sturdy weather-resistant case. The AVO830 and AVO835 are true RMS multimeters that support current measurements of up to 1000V AC, DC and AC DC voltage measurements* and 0.1 mA to 10A.

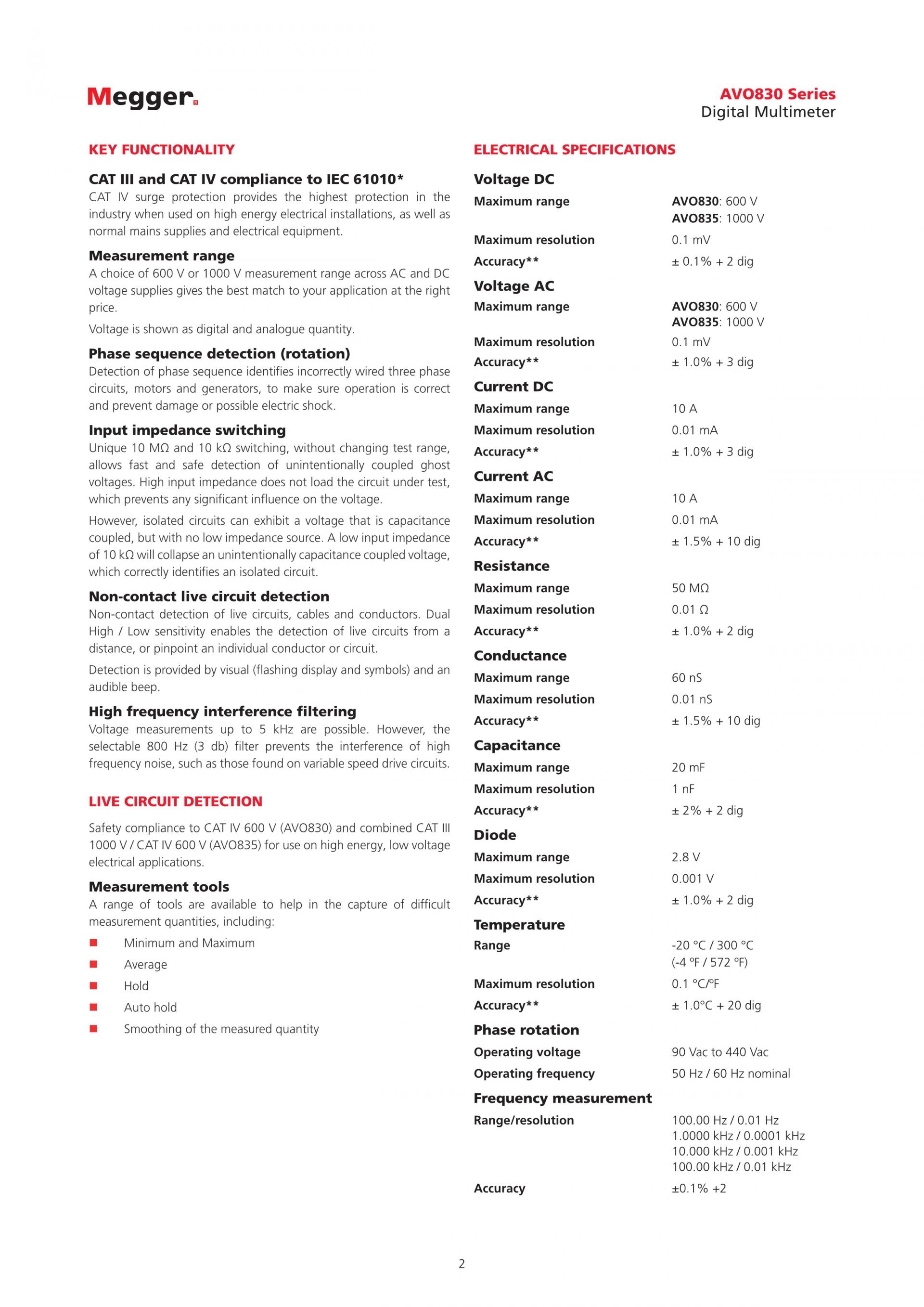

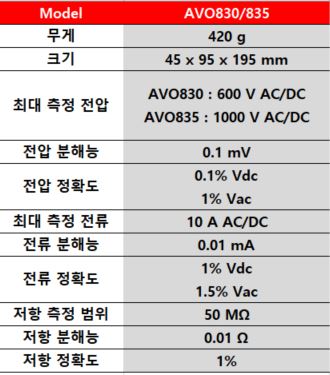

Product Specifications
AVO830/835 is a multimeter designed for professional electricians, service staff, and engineers who require high reliability, build quality and performance.
The AVO830/835 has CAT IV Surge protection, providing industry-leading protection when used in high-energy electrical installations and general mains supply and electrical equipment.
The AVO830/835 can select a 600V or 1000V measurement range across half the AC/DC supply.
The AVO830/835 identifies miswired three-phase circuits, motors and generators to ensure correct operation and to prevent possible damage or electric shock.&ltbr&gt&ltbr&gt&ltbr&gt&ltbr&gt&ltbr&gt&ltbr&gt&ltbr&gt&ltbr&gt
