RIGOL DS1000E·D·B·U Digital Oscilloscope Series

Rigol · RIGOL DS1000E · DS1000D · DS1000B · DS1000U
2-channel digital oscilloscope series – 2-channel digital oscilloscope series
• DS1000·E·D·B·U Series
DS1052E · DS1102E
DS1052D · DS1102D2CH 2-CH 2 CHANNEL 50 MHz 100 MHz 50 MHz 100 MHz

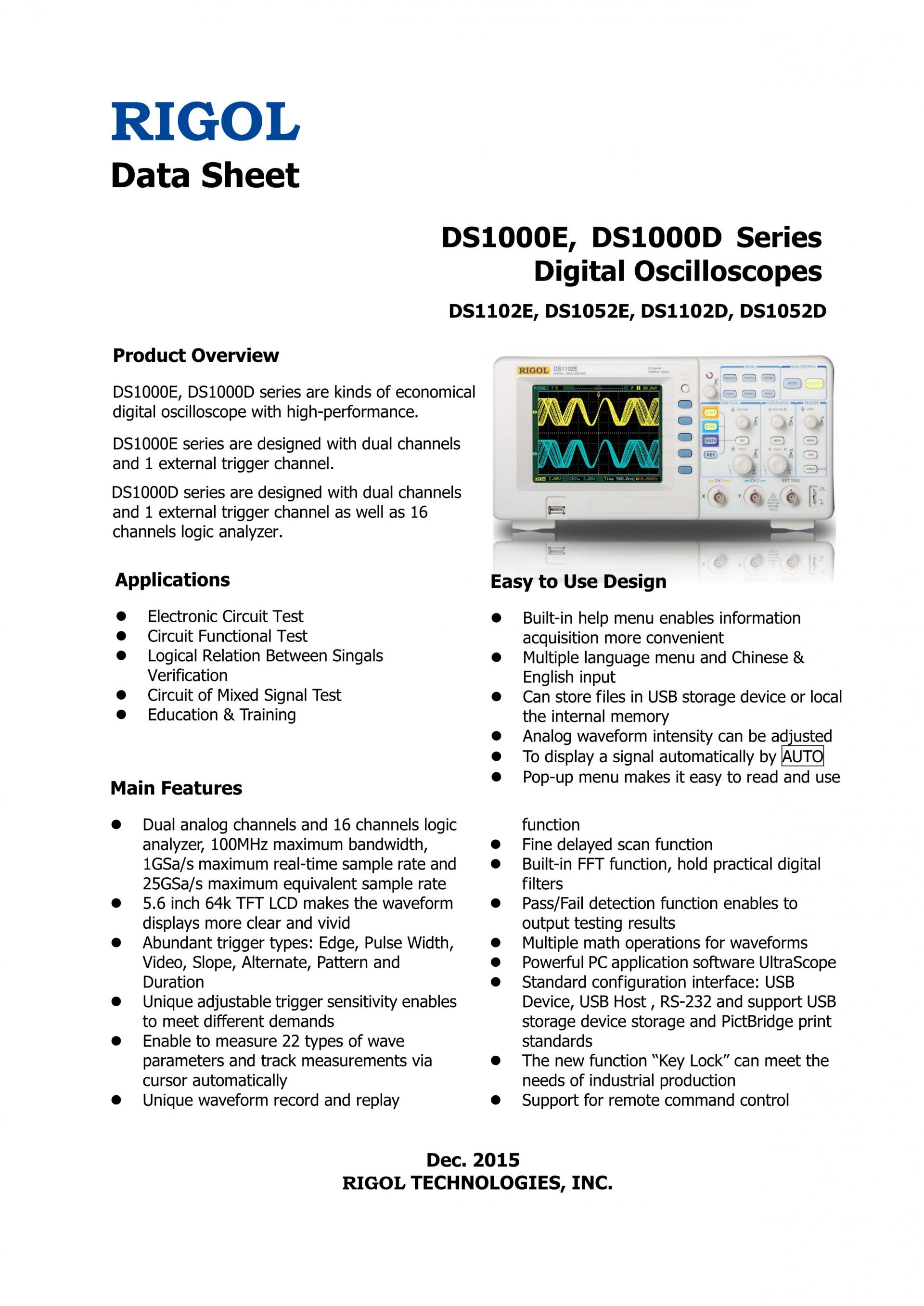

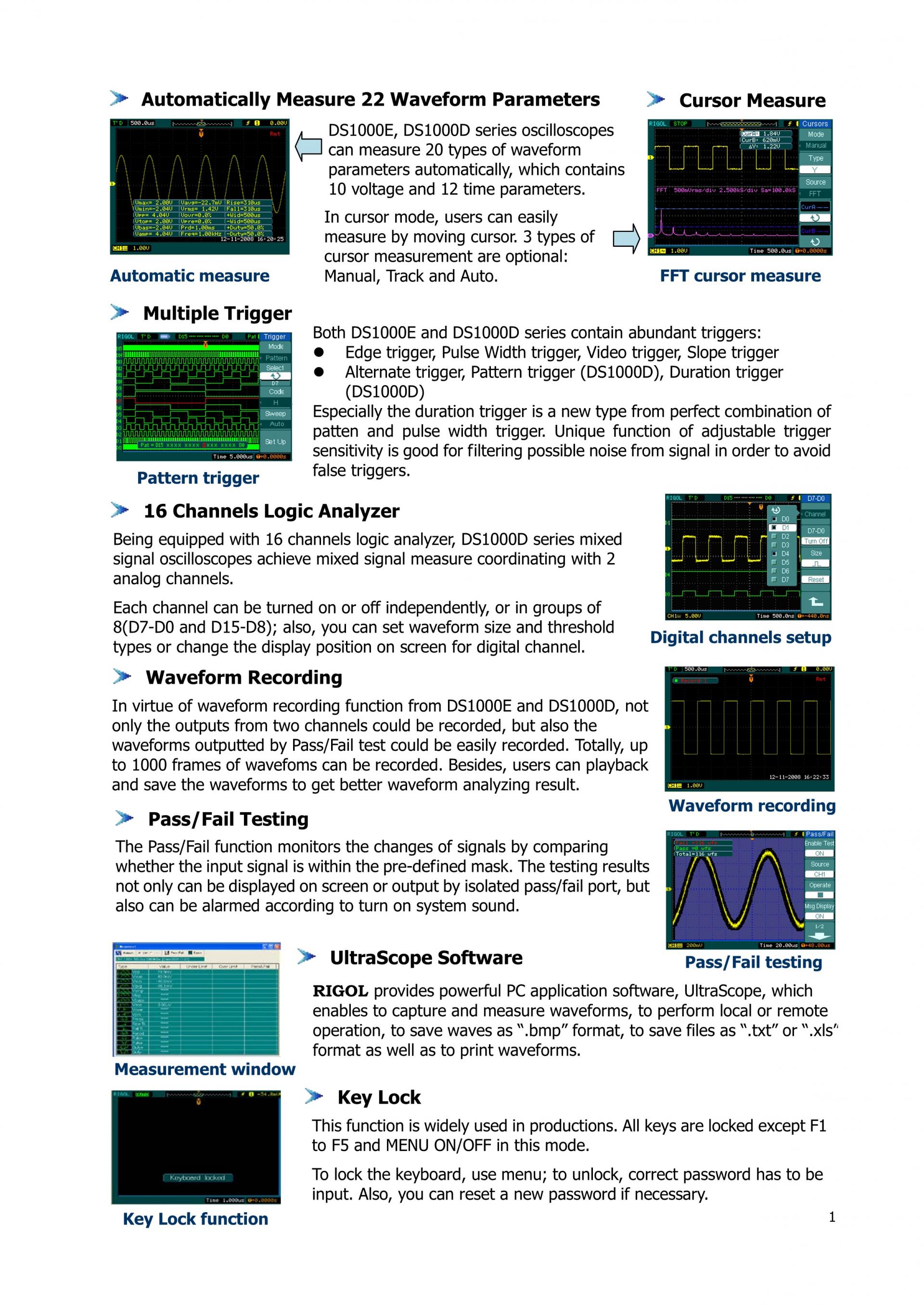

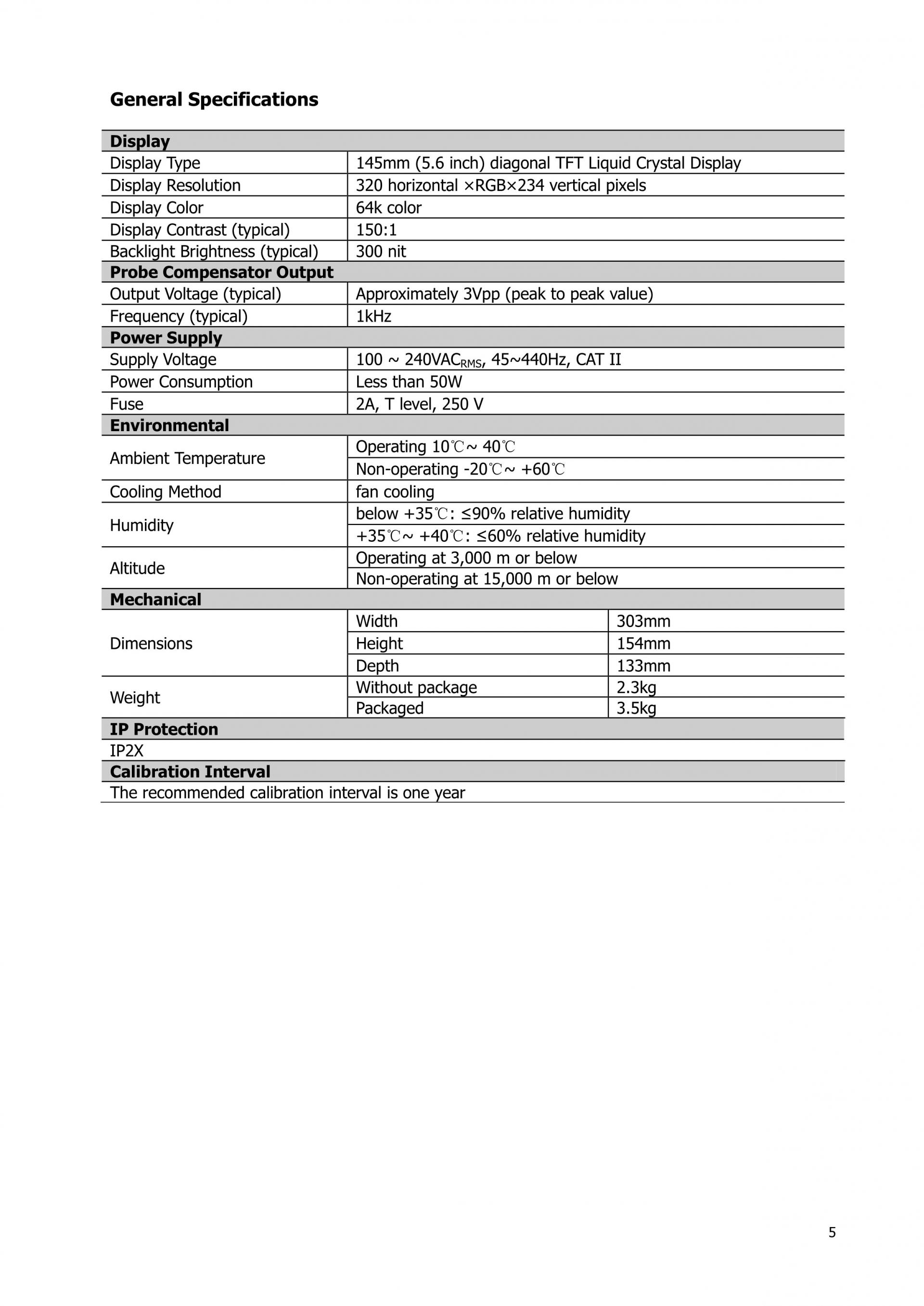

Key features 1GSa/s maximum real-time sampling rate, 25GSa/s maximum equivalent time sampling rate 1Mpts long memory depth Ultra-small design:303mm x 154mm x 133mm (WxHxD)64k TFT color LCD, display bright and vivid waveform Advanced trigger mode:edge, video, pulse width, slope, alternative adjustable greater sensitivity:effectively filtering noise from larger signals and preventing erroneous triggers 20 automatic measuring cursor measurements:manual, tracking and automatic measuring modes 10 waveforms, 10 settings, BMP and CSV storage mathematics functions:, -, x, FFT, inverted special digital filter, and waveform recorder Hardware frequency counter standard interface with built-in USB device, USB host, USB host, RS-232 standard configuration:PassIFail test, photoelectric insulation to effectively prevent electromagnetic interference Print directly to PictBridge compatible printer via multi-lingual user interface, built-in help system USB device interface.
Introduction ModelDS1052EDS1102EProduct Info

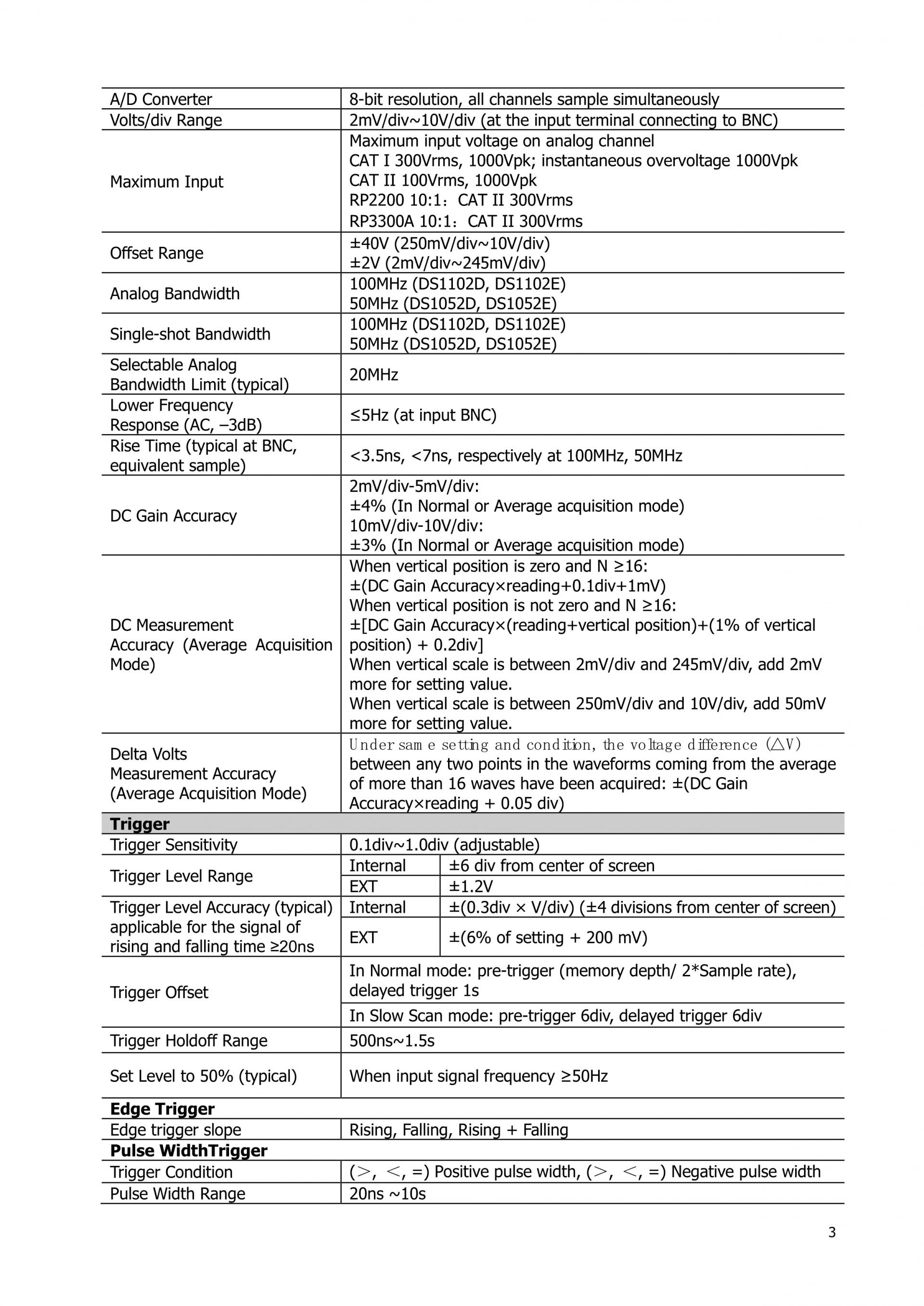

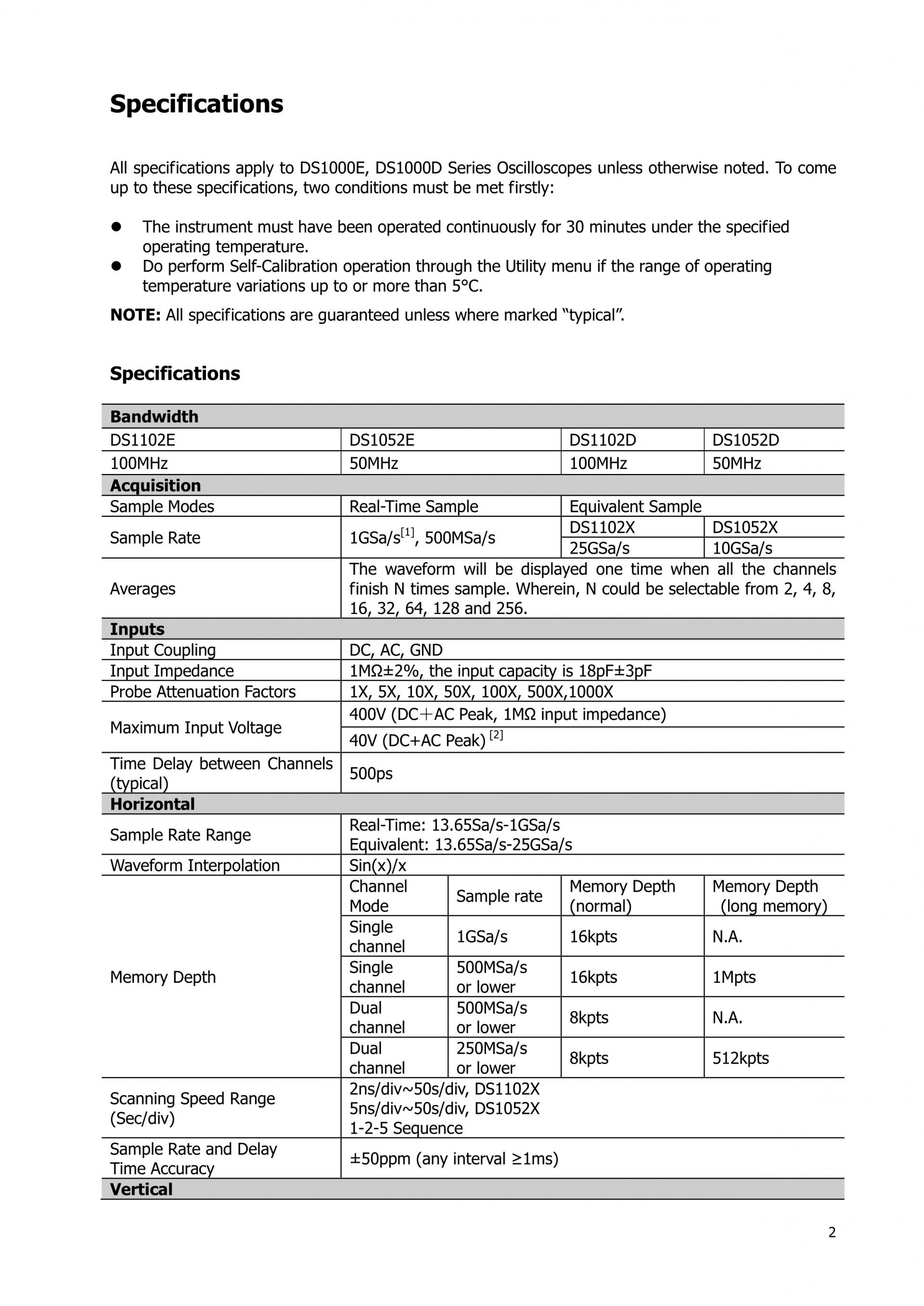

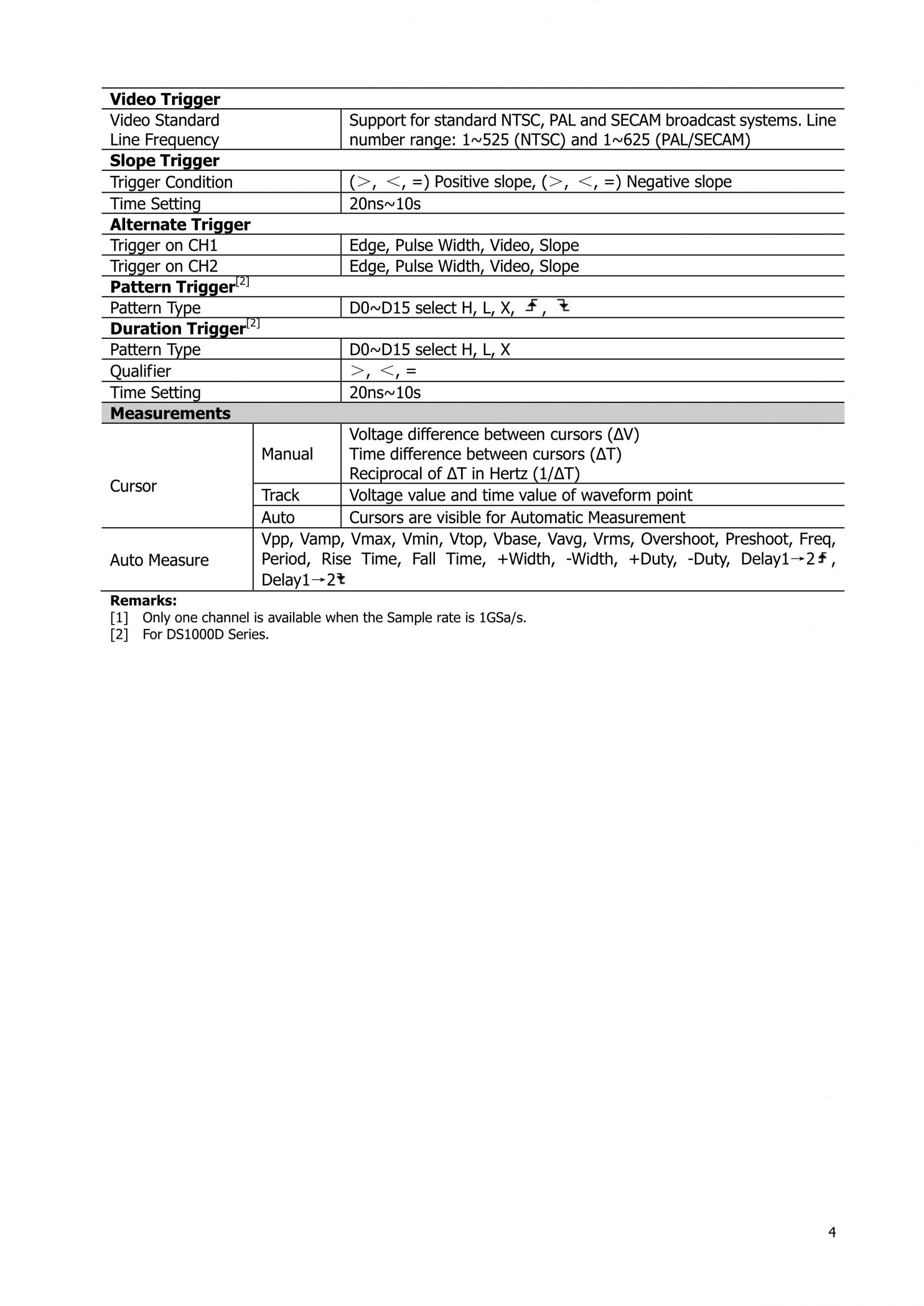

2 Channel / 50 MHz Digital Oscilloscope 2 Channel / 100 MHz Digital Oscilloscope Digital Channel ––Sampling Rate 1GSa/s1GSa/s Signal Generator ––Analog Channel 2 Channel Frequency Band 50 MHz 100 MHz Maximum Memory Size 1Mpts 1Mpts Wave Capture Rate –



Up to 1Mpts Memory 1Mpts Standard Memory allows users to consider the overall situation and details of waveforms, to ensure the highest sampling rate without missing waveform changes and to ensure the highest sampling rate It can be maintained for a long time.
Keyboard function lock keyboard lock can be widely used in production. In this mode, everything is locked except for the menu key F1-F5 and the menu on/off. Keyboard locks are set in the menu, a password is required to unlock, and the password can be reset.
Wave recording and playback functions The waveform recording function not only records the input waveforms of the two channels, but also records the waveforms of the outputs by detecting Pass/Fail. Up to 1000wfms/s frames can be recorded and better waveform analysis can be achieved with playback and recording capabilities.&ltbr&gt&ltbr&gt&ltbr&gt&ltbr&gt&ltbr&gt&ltbr&gt
