Mekmin mind LNX-7515-GL

Request for price

  • Prod No. :
    309757
  • Manufacturing date :
    -
  • Stock holdings

Product information

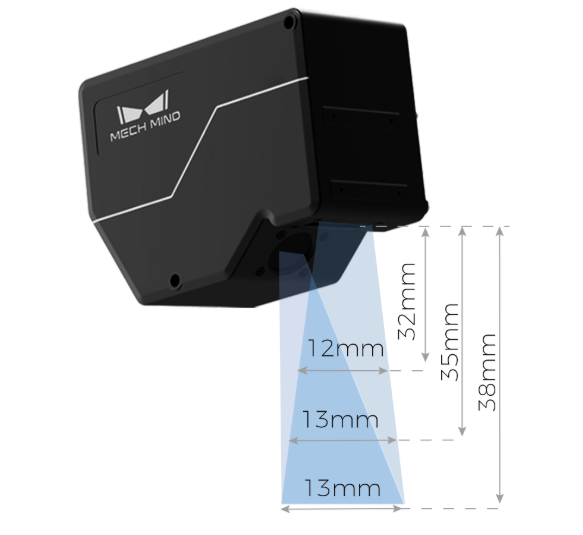

The Mech-Eye 3D laser profiler is a 3D line laser profiler researched and developed by Mech-Mind Robotics. Mech-Eye SDK or third-party machine vision software allows you to acquire photometric images, depth maps, and point clouds captured with a laser profiler.The Mech-Eye LNX series 3D laser profiler is specifically designed for demanding in-line inspection applications, with a 4K resolution and a scan speed of 15 kHz. This means that even the smallest target objects in the production line can be inspected precisely.The Mech-Eye LNX series, along with its own Mech-MSR 3D measurement and inspection software, provides comprehensive quality inspection solutions such as defect detection, dimensionality measurement, OCR reading, and statistical calculation.It includes the Mech-Eye SDK's software user manual, laser profiler hardware manual, and after-sales service.It provides 4,096 data points per 4K+ resolution profile for finer, more accurate, and complete point cloud generation for detailed features of the object's surface (depressions, projections, etc.).Ultra-fast scan speeds of 3.3 kHz* (full field of view) and up to 15 kHz* (full X-axis measurement range) scan speeds, advanced optical design, and algorithms deliver higher accuracy 3D data at higher speeds.Micron-level precision of 9?m* X-axis resolution, 0.2?m* Z-axis repetition precision, and ± 0.02% of F.S. Z-axis linearity enable precise parts inspection and fine feature or defect measurement.It supports an all-in-one delivery method integrated with the Mech-MSR 3D measurement and inspection software developed by itself. Integrated with Mech-Vision and Mech-DLK for efficient application deployment, GenICam3.0 and GigE Vision standards also apply. It provides an efficient system that can be deployed in as little as two hours with easy setup and without extensive expertise.Ultra-fast scan speeds of 3.3 kHz* (full field of view) and up to 15 kHz* (full X-axis measurement range) scan speeds, advanced optical design, and algorithms deliver higher accuracy 3D data at higher speeds.Single-Shot HDRSingle-Shot HDR features scan both dark (low reflectance) and light-reflective (high reflectance) surfaces with a single exposure.It is a state-of-the-art lineup designed for 3D inspection and measurement in various scenarios across the industry with two different model options: LNX-8000 and LNX-7500.

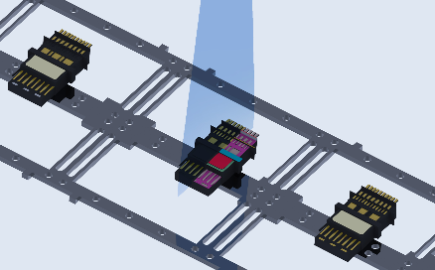

Type-C pin height measurementMech-Eye LNX-7515-GL outputs fine surface features of very small Type-C pins in 3D images with 3K+ high resolution and 0.15 ?m repeat precision, and provides optimal imaging by minimizing noise from reflective surfaces or bright features.

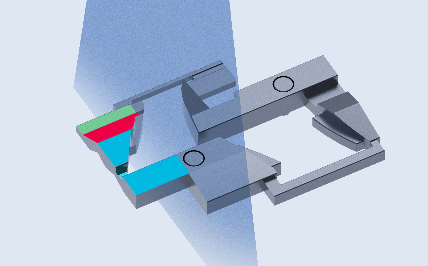

Folderphone hinge inspectionMech-Eye LNX-7515-GL accurately inspects items such as the flatness of the polterphone hinge reference plane and the narrowness between the reference plane and the inclined plane.
