Vertical Conveyor Oven VLO-200

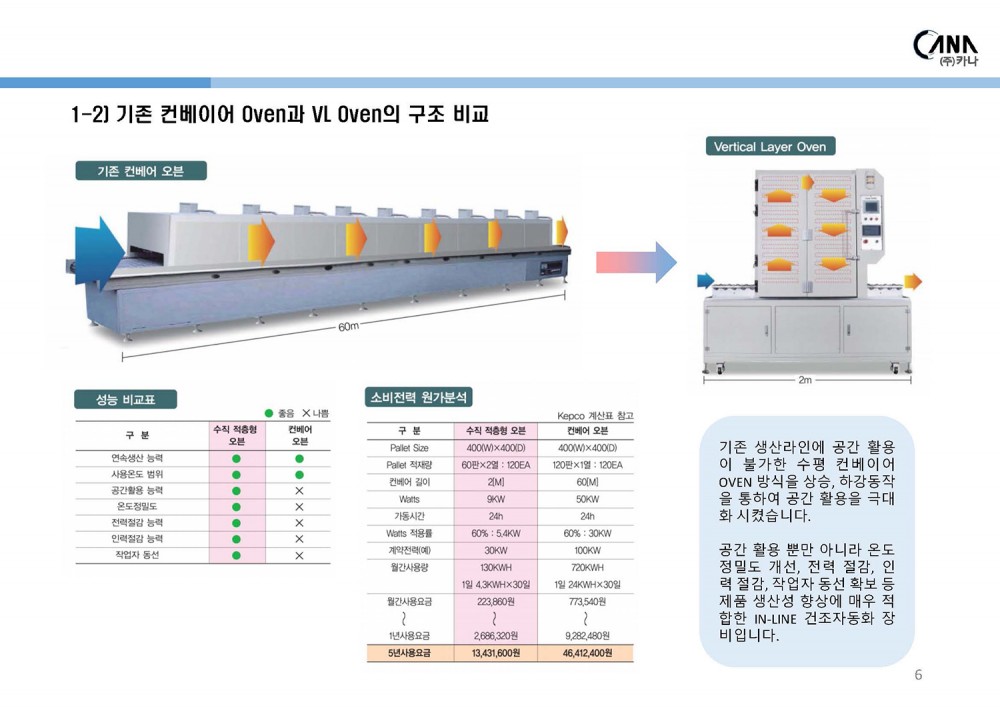

In general conveyor dryers,production space increases indefinitely in proportion to production,not only causing real estate costs to companies,but also increasing production costs due to high power consumption,weakening price competitiveness.

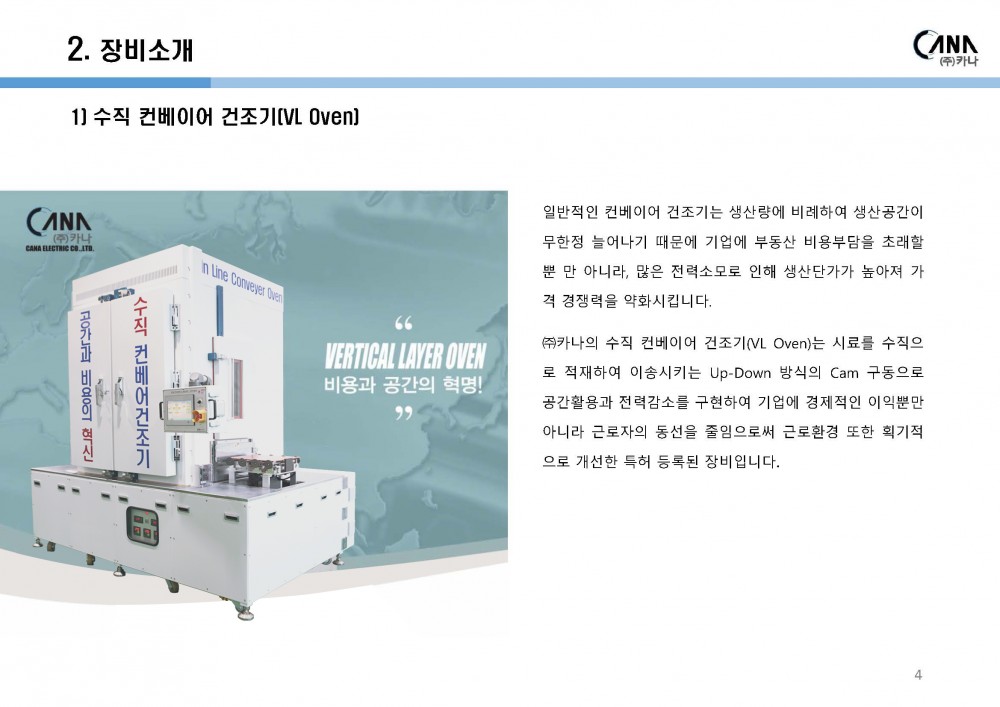

Kana's vertical conveyor dryer (VLOVEN) is a patented equipment that dramatically improves the working environment by reducing not only the economic benefits of companies but also the movement of workers by implementing space utilization and power reduction through up-down cam driving.
This model VLO-200 is designed in accordance with a maximum operating temperature of 200°C and is mainly used for high-temperature drying such as baking of PCB copper plates and curing of epoxy of automotive electrical equipment. In addition,the design is ordered and can be made according to customer specifications.

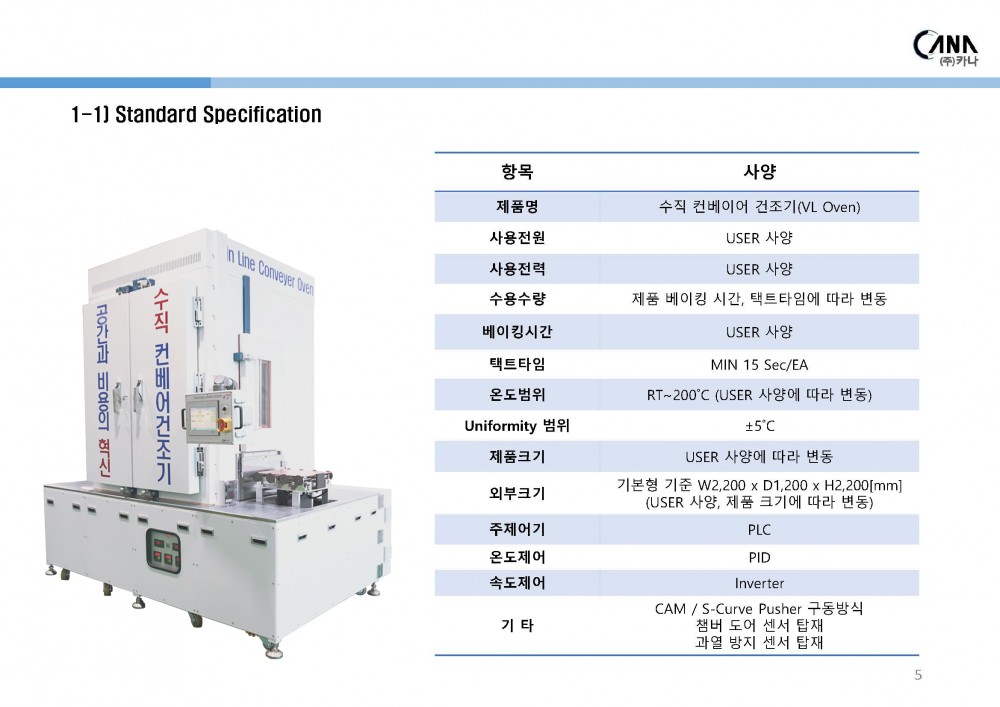

<SPEC>
 - Power used / Power used / quantity used / drying time:Customer specification
 -Drying method:Hot air drying.
 Tact time:At least 15 sec/ea
 - Usage temperature:RT to 200°C (varying according to USER specification)
 - Temperature deviation:±5°C.
 -Dry product size:Design changed according to customer specifications.
 -Main controller:PLC
 -Temperature Control:PID
 SW:Speed control:Inverter
 -Use of filter:Customer specification
 -Others:CAM/S-Curve pusher driving method,chamber door sensor mounted,and overheating prevention sensor mounted.
