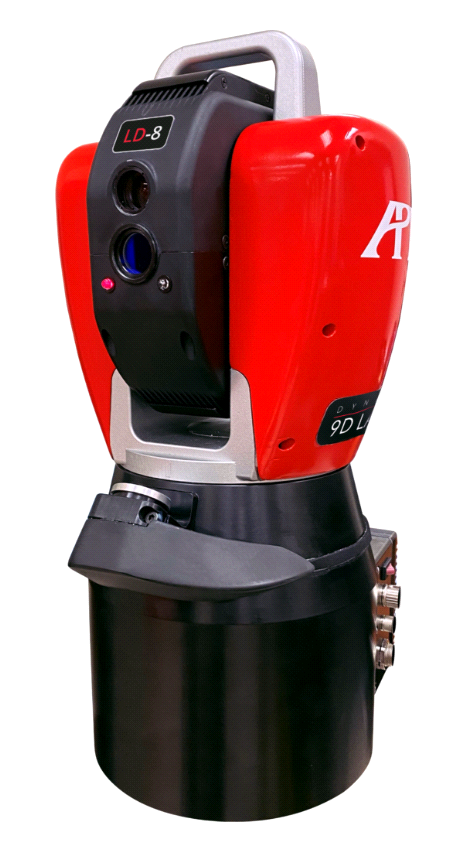

[Laser scanner / 3D scanner] 9D LADAR

Laser scanner optimized for automation of measurements beyond the limits of ultra-precise 3D scanners Automatic measurement of objects without human intervention Unconstrained scanning performance for a variety of measurements such as transparent/high-gloss/total reflection Controller built-in small lightweight 3D precision shape Measurement features and advantages Best scanner for automation – scanning targets ranging from 0.5m to 25m Unconstrained – μm level ultra-precise scanning 9D (x,y,z,j,j,k,r,g,b) scanning – 20,000 points per second for color scanning – phase difference method.05mm gap high-speed high-density raster scanning less than 32μm scanning laser-beam spot – 85° laser-beam incident angle-pipe internal diameter scanning relative to vertical surface scanning micro-shaped scanning plane scanning max. 25m large volume automatic scanning

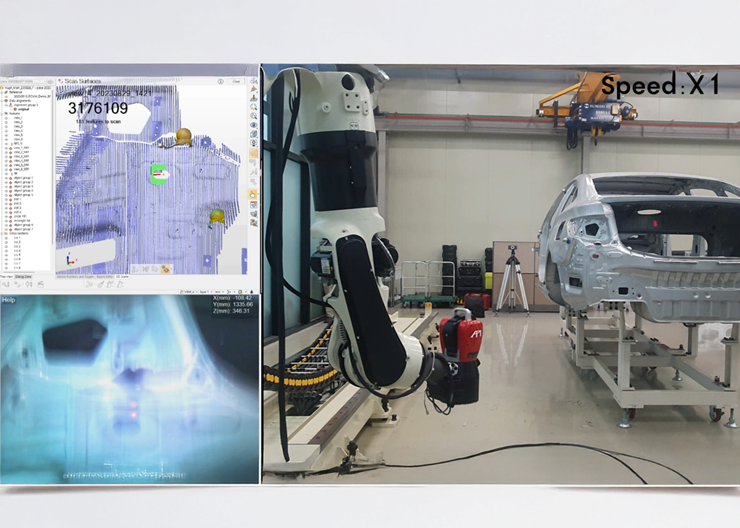

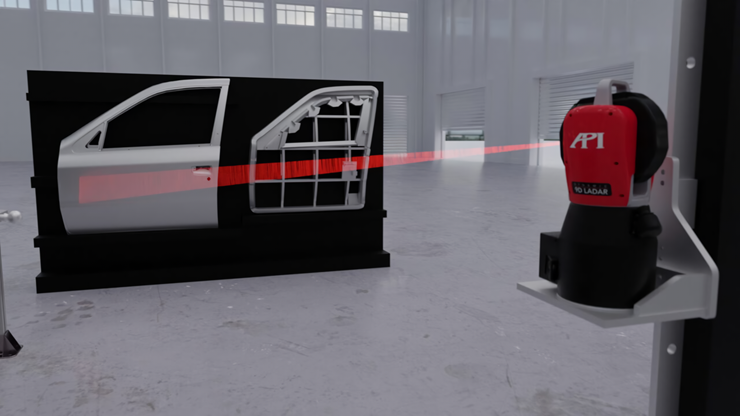

Creating an intuitive scanning path with a smart camera Controller built-in small lightweight 3D scanner application car BIW InLine automatic inspection system car battery case automatic inspection system finished car IN & OFF LINE inspection & digital confirmation & jig & inspection aircraft fuselage loading verification automatic inspection system aircraft wing shape measurement & fuselage shape measurement & assembly alignment space Projectile Optic Alignment & Structural Shape Scan & Zig and Assembling Alignment Missile Launch Vehicle Verification & Guided Ballistic Stand Verification & Blade Verification, Measurement of the shape of large workpiece and structure and inspection of geometric tolerance
