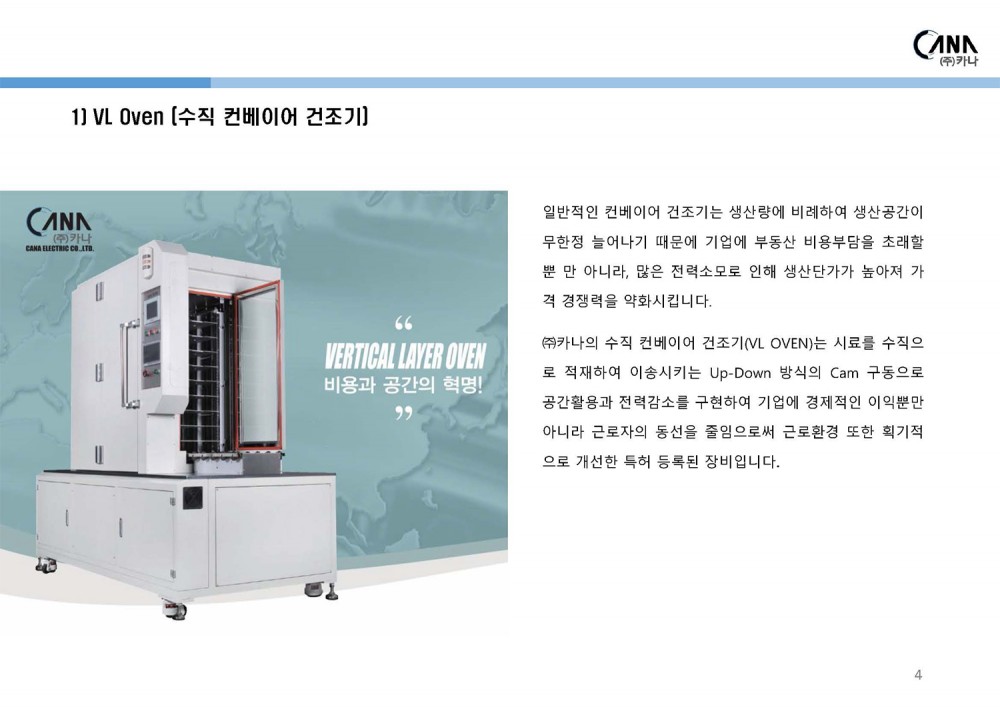

Vertical Conveyor Oven VLO-080

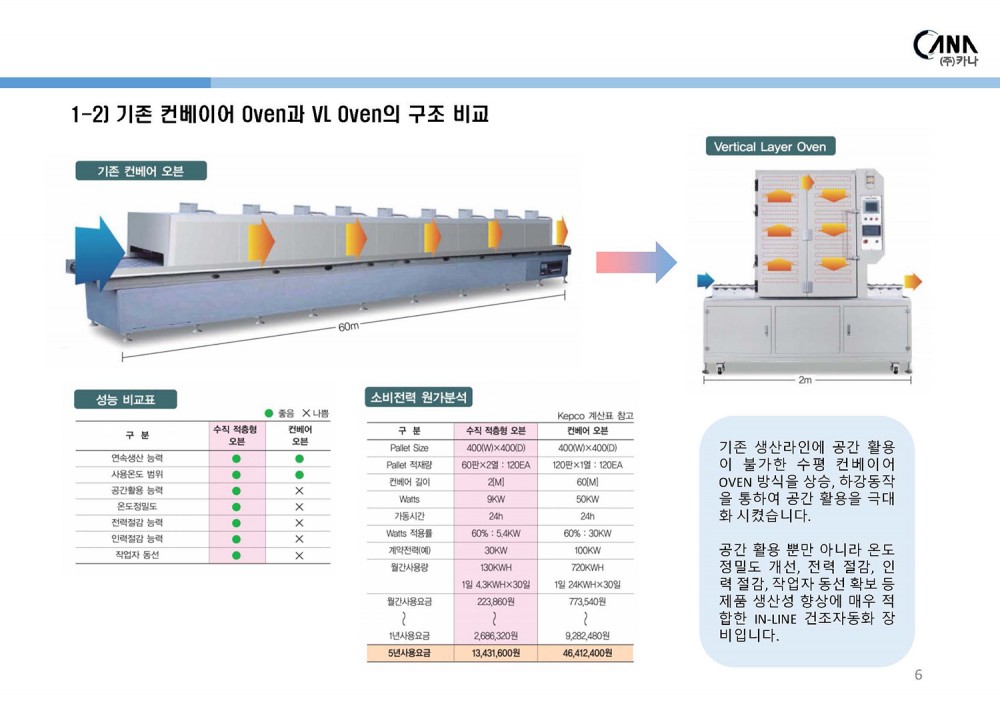

Vertical conveyor dryers maximize space utilization through ascending and descending operations of horizontal conveyor dryers with weak space utilization rates in existing automated production lines.
Not only space utilization,but also temperature precision improvement, power reduction,manpower reduction,and securing worker movement.
It is an IN-LINE dry automation equipment that is very suitable for improving productivity.
This model VLO-080 is designed for a maximum operating temperature of 80°C and is mainly used for low-temperature drying such as diagnostic kid samples and PCB coating liquid curing. In addition,the design is ordered and can be made according to customer specifications.

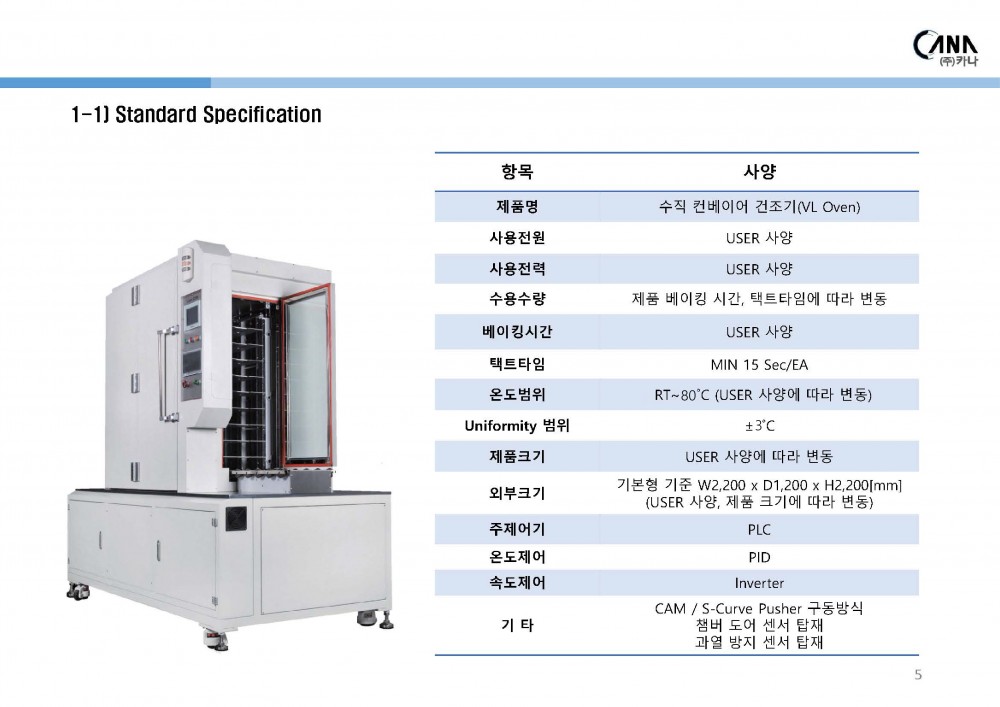

<SPEC>
 - Power used / Power used / quantity used / drying time:Customer specification
 -Drying method:Hot air drying.
 Tact time:At least 15 sec/ea
 - Usage temperature:RT~80°C (varying according to USER specification)
 - Temperature deviation:±5°C.
 -Dry product size:Design changed according to customer specifications.
 -Main controller:PLC
 -Temperature Control:PID
 SW:Speed control:Inverter
 -Use of filter:Customer specification
 -Others:CAM/S-Curve pusher driving method,chamber door sensor mounted,and overheating prevention sensor mounted.
